A Comprehensive Guide to the 6 Pin 22mm Metal Push Button

2025-01-22

The 6 Pin 22mm Metal Push Button is a versatile and durable component used across various industries for controlling devices, machinery, and equipment. Whether you're designing an electronic project, upgrading industrial machinery, or enhancing home automation systems, this push button can be a reliable and aesthetically pleasing choice.


Let’s dive into what makes the 6 Pin 22mm Metal Push Button a preferred option for so many applications.

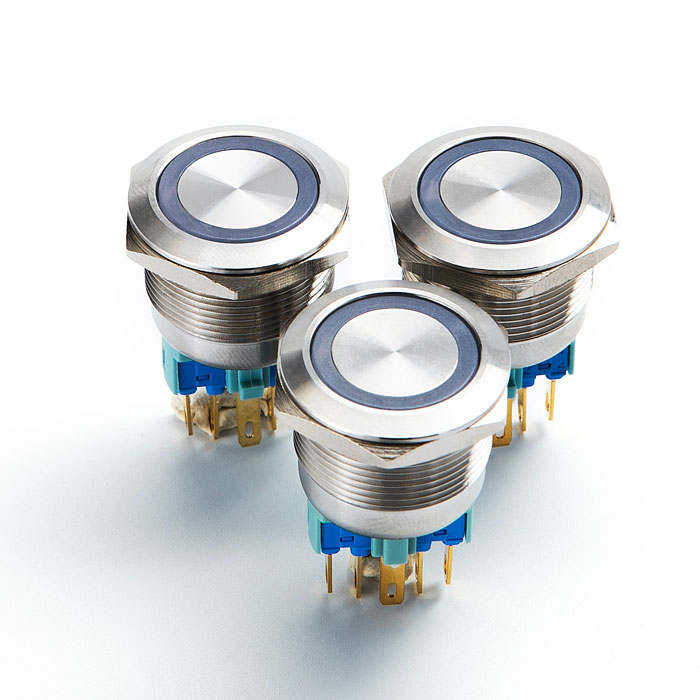

What is a 6 Pin 22mm Metal Push Button?

This push button is a metallic, momentary or latching switch with a 22mm diameter, designed to fit standard panel holes of the same size. Its 6-pin configuration allows for flexible wiring options, enabling multiple functionalities such as powering devices, triggering signals, or indicating status through built-in LEDs.


The button is typically constructed from high-quality stainless steel or aluminum alloy, making it resistant to corrosion, wear, and impact.


Applications of the 6 Pin 22mm Metal Push Button

1. Industrial Control Panels:

  Widely used in factories and workshops for controlling machinery, starting motors, or triggering alarms.


2. Automotive Applications:

  Perfect for car dashboards, ignition systems, or auxiliary device controls.


3. Home Automation:

  Used in smart home systems for activating lights, appliances, or security systems.


4. Electronic Projects:

  A popular choice for DIY electronics enthusiasts building custom devices or robots.


5. Public Interfaces:

  Found in elevators, kiosks, vending machines, and public equipment due to their durability and user-friendly design.


How to Wire a 6 Pin 22mm Metal Push Button

1. Identify the Pins:

  - Two pins are usually dedicated to the LED (positive and negative).

  - The remaining four pins are used for the switch connections.


2. Plan Your Circuit:

  - Decide whether you need momentary or latching action.

  - Connect the appropriate pins to your power source, load, or control circuit.


3. Connect the LED:

  - Use the two LED pins to wire the indicator light. Ensure the polarity matches the LED requirements.


4. Test the Setup:

  - Before installing, test the button to confirm that it operates as expected and the LED lights up correctly.


Advantages of Using a 6 Pin 22mm Metal Push Button

1. Enhanced Functionality:

  The 6-pin design allows for dual-circuit functionality, making it ideal for complex applications.


2. Aesthetic Appeal:

  The sleek metal finish and illuminated LED make it an attractive choice for modern equipment and devices.


3. Reliability:

  Built to withstand heavy usage, this button ensures consistent performance over time.


4. Flexibility:

  Available in various colors, LED options, and configurations, it can be customized to suit specific requirements.


Choosing the Right 6 Pin 22mm Metal Push Button

When selecting the best button for your application, consider the following:


1. Momentary or Latching:

  Determine whether you need a temporary or permanent action switch.


2. LED Color:

  Choose from a range of LED colors (red, green, blue, white, etc.) to match your system’s aesthetic or functional requirements.


3. Voltage Compatibility:

  Ensure the button supports the voltage range of your application (commonly 12V, 24V, or 110V).


4. IP Rating:

  If using the button outdoors or in harsh environments, look for a model with a high IP rating for dust and water resistance.


5. Material Quality:

  Select a button made from high-grade stainless steel or other durable metals for long-term use.


The 6 Pin 22mm Metal Push Button is a versatile and reliable solution for a wide range of applications, from industrial machinery to home automation. Its durable construction, flexible wiring options, and aesthetic appeal make it a favorite among engineers, hobbyists, and manufacturers alike.
