Types and Standards of High-Pressure Butt Welding Flanges

High-pressure butt welding flanges are vital in ensuring the efficiency and safety of piping systems. But did you know that these flanges come in various types, each designed for specific applications? In this blog, we’ll discuss the different types of high-pressure butt welding flanges and the standards that govern their design and manufacturing.

Types of High-Pressure Butt Welding Flanges

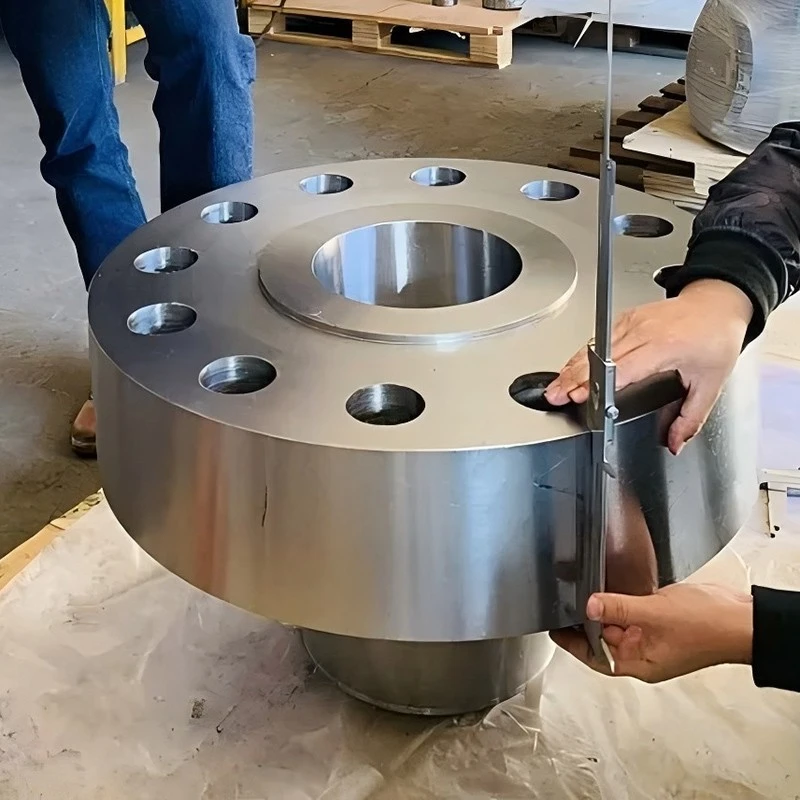

1. Weld Neck Flanges:

  - Designed for high-pressure applications, weld neck flanges have a long tapered hub that provides additional strength and reduces stress concentration.

  - Ideal for extreme temperature and pressure conditions.

2. Blind Flanges:

  - Used to seal the end of a piping system or pressure vessel, blind flanges prevent the flow of materials while allowing easy access for maintenance.

  - Commonly used in testing and inspection scenarios.

3. Slip-On Flanges:

  - These flanges are slipped over the pipe and welded in place. They are easier to install but are typically used for lower-pressure applications compared to weld neck flanges.

4. Socket Weld Flanges:

  - Feature a socket into which the pipe is inserted before welding. These are ideal for smaller pipe sizes and high-pressure systems.

5. Lap Joint Flanges:

  - Used with a stub end, these flanges are suitable for systems that require frequent dismantling for inspection or cleaning.

Standards Governing High-Pressure Butt Welding Flanges

Adhering to industry standards ensures that high-pressure butt welding flanges meet the necessary safety, quality, and performance criteria. Key standards include:

1. ASME B16.5:

  - Covers pipe flanges and flanged fittings for sizes up to 24 inches.

2. ASME B16.47:

  - Applies to large-diameter flanges, typically over 24 inches.

3. ANSI Standards:

  - Ensure compatibility and interchangeability of flanges within different systems.

4. ISO Standards:

  - Provide international guidelines for flange manufacturing and testing.

Factors to Consider When Choosing Flanges

- Material: Ensure the flange material is compatible with the system’s operating conditions.

- Pressure Rating: Select flanges with a pressure rating suitable for your application.

- Size: Ensure the flange dimensions match the pipe and system requirements.

Understanding the types and standards of high-pressure butt welding flanges is essential for selecting the right components for your piping systems. By choosing flanges that align with your system’s requirements, you can enhance performance, safety, and longevity.
