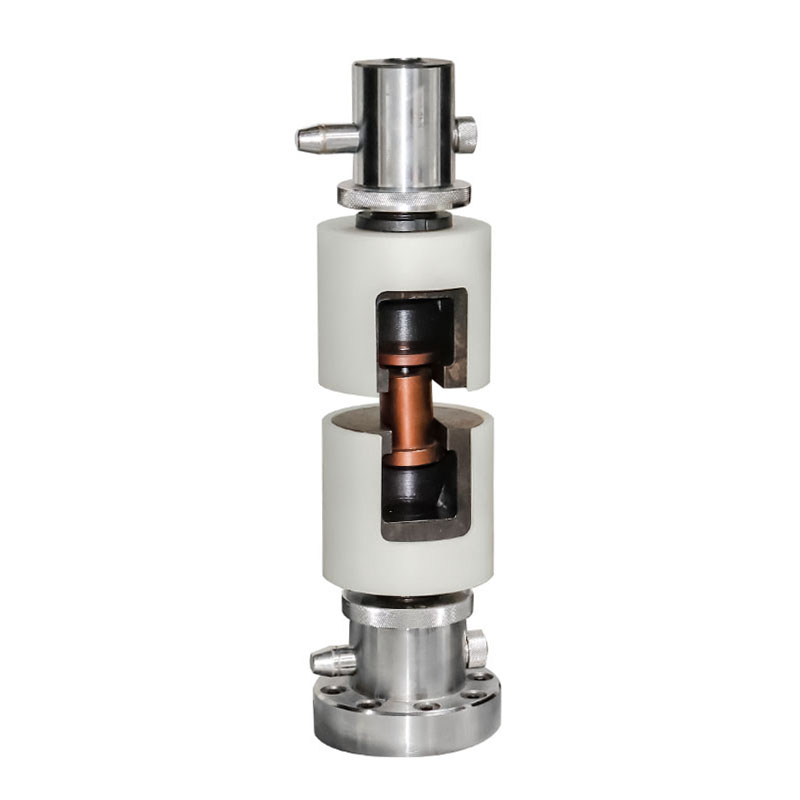

What types of materials are commonly used in the construction of screw and bolt testing fixtures

Screw and bolt testing fixtures are typically constructed from durable and rigid materials to ensure accuracy and repeatability in testing. Commonly used materials for the construction of these fixtures include:

1. Steel: Steel is a popular choice for constructing screw and bolt testing fixtures due to its strength, rigidity, and durability. It provides a stable and robust framework for conducting tests. Stainless steel is often used when corrosion resistance is required.

2. Aluminum: Aluminum is a lightweight yet sturdy material commonly used for constructing testing fixtures. It is often chosen when portability or reduced weight is a consideration, making it easier to move and transport the fixture.

3. Cast Iron: Cast iron is known for its high strength and resistance to wear and deformation. It is used in fixtures that need to withstand heavy loads and prolonged use.

4. High-Strength Alloys: Some testing fixtures may be constructed from high-strength alloys, such as titanium, to provide excellent strength and corrosion resistance, particularly in specialized applications.

5. Composite Materials: In some cases, composite materials may be used to reduce weight and provide specific mechanical properties. Carbon fiber and fiberglass composites are examples of materials that may be incorporated into testing fixtures.

6. Plastics: While less common, certain plastic materials may be used in the construction of less demanding testing fixtures. Plastics can be suitable for low-force testing and are chosen for their cost-effectiveness and ease of machining.

The choice of material depends on various factors, including the intended application, the forces and loads to be applied, environmental conditions, and the need for precision. For example, a fixture designed for testing heavy-duty industrial bolts may require a robust steel or cast iron construction, while a fixture for laboratory research may opt for lightweight aluminum or composite materials.

It's important to select the appropriate material that can withstand the specific testing conditions and ensure the accuracy and reliability of the test results. Additionally, some fixtures may use a combination of materials to take advantage of the unique properties each material offers, such as using steel for structural components and aluminum for less-stressful parts.
